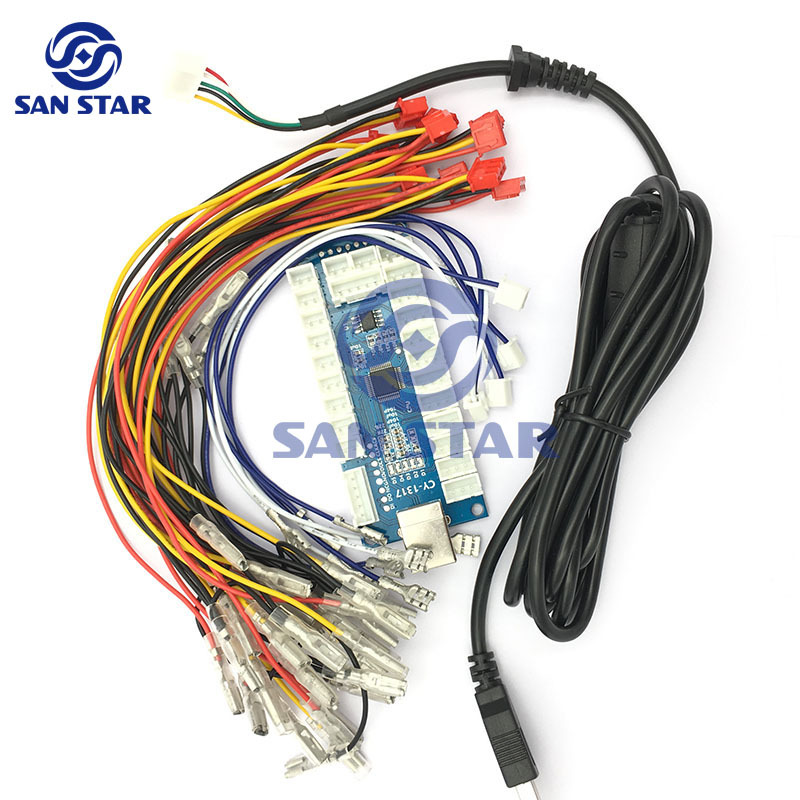

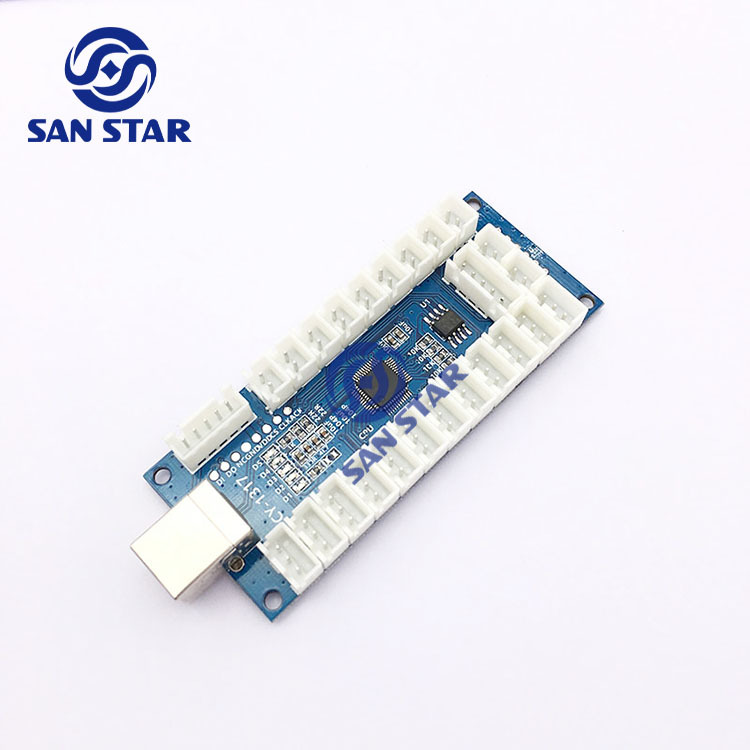

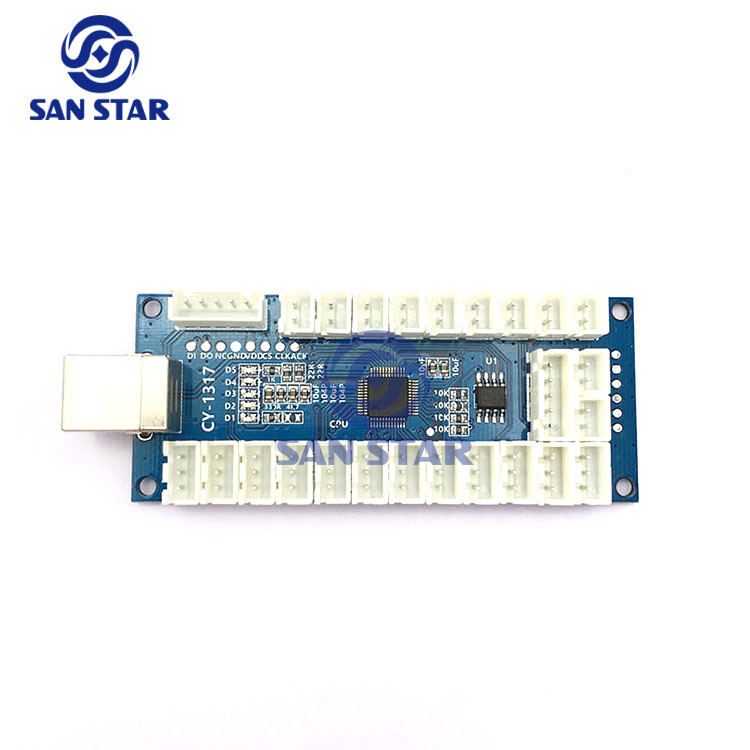

This is a Zero Delay multi 4 in 1 LED USB joystick encoder can work with PS3,PC,Android,Xbox 360 for Window which can help you play your favorite arcade games on your PC/Laptop. The encoder need work with MAME or other simulator .
This encoder can automatic identify PS3 and Android, PC and Xbox360 for Window need to use MODE button to switch.
Function key:
MODE: 1. when play PC or xbox360 for window then long press this button for 5 seconds can switch between PC and xbox360 for window.
2. for Menu button
Press short time for Menu, press long time for switch. Or set MODE 1 for Menu,MODE 2 for Switch.
TURBO: continuous shoot function On
AUTO: continuous shoot frequency setting , fast or slow
CLR: cancel continuous shoot function or continuous shoot frequency function.
Install Description:

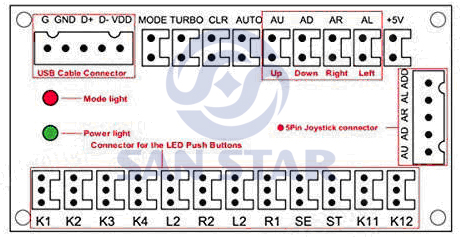

1. 5Pin type joystick: please use the 5 pin cable connect the joystick into the encoder (Ps: if the movement of the direction is wrong. please turn the 5 pin interface for 180 degree.2Pin type joystick: please separated the direction and connect the wires into the encoder ports: 5V LED joystick can get 5V power from 5V connector on the encoder board.

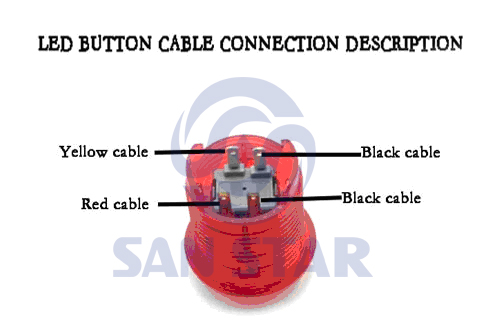

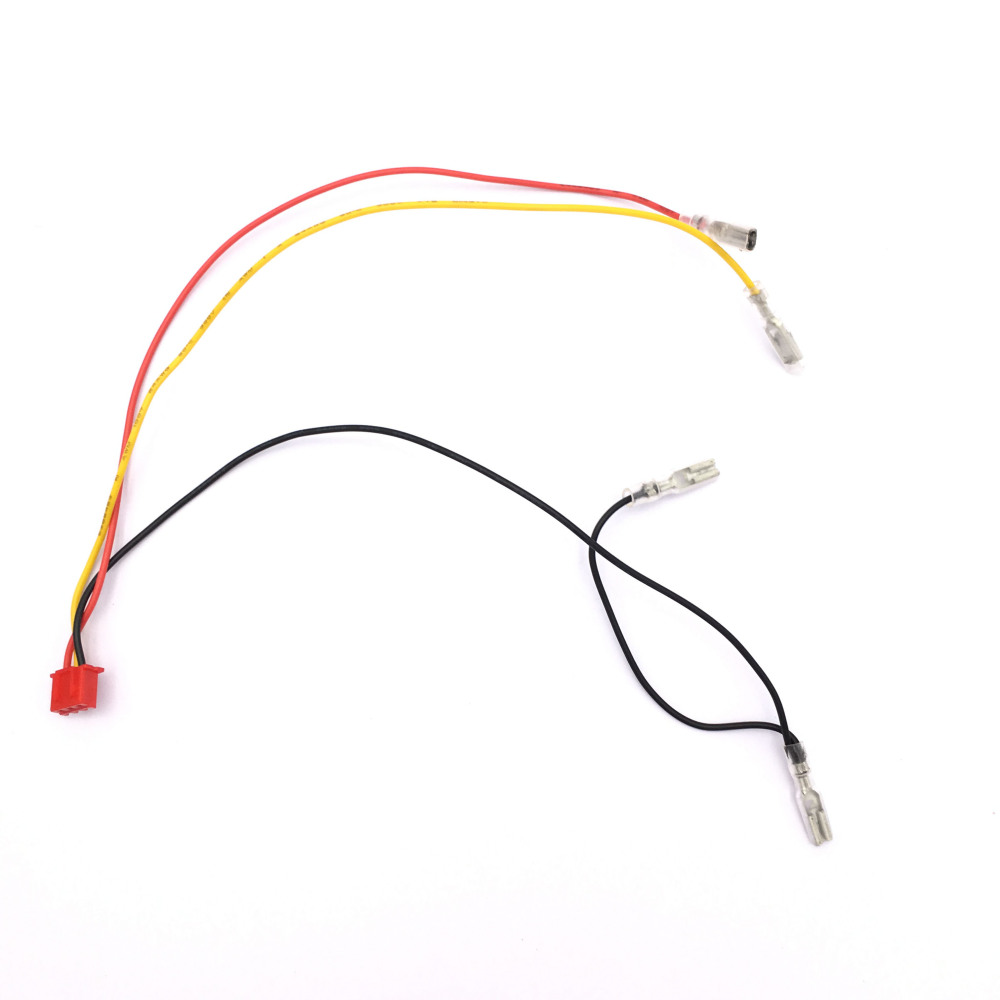

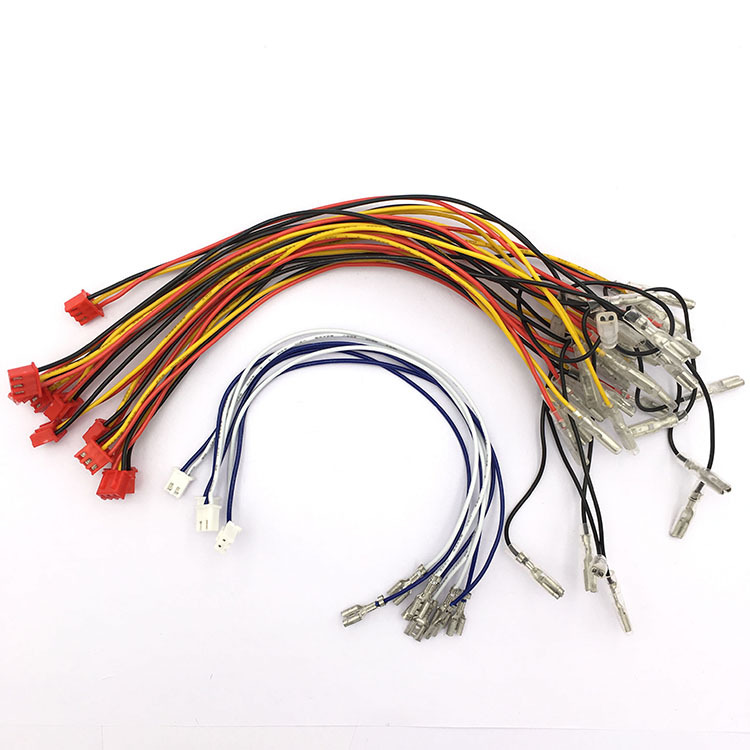

2. All the 3Pin wires are used to connect the LED push button into the encoder. Due to it is a LED push button. Need to separated the positive terminal and negative terminal. Please reference to PIC 2 to connect the wires into the LED Push buttons.(PS: The standard design for wires is that the LED is lighted all the time. If you need to make LED lighted only when you push the button .Please reference PIC 3 to DIY the 3 Pin wires carefully)
3.Push Auto+Fire Button one times can turn on Auto Fire:Push Turto+Fire Button can turn on Repeating Fight;Push Ctl+Any Buttons will cancel Auto/Turbo etc.
4.Due to this encoder get power from USB cable.The encoder can just support 5V LED push button &5V LED Joystick

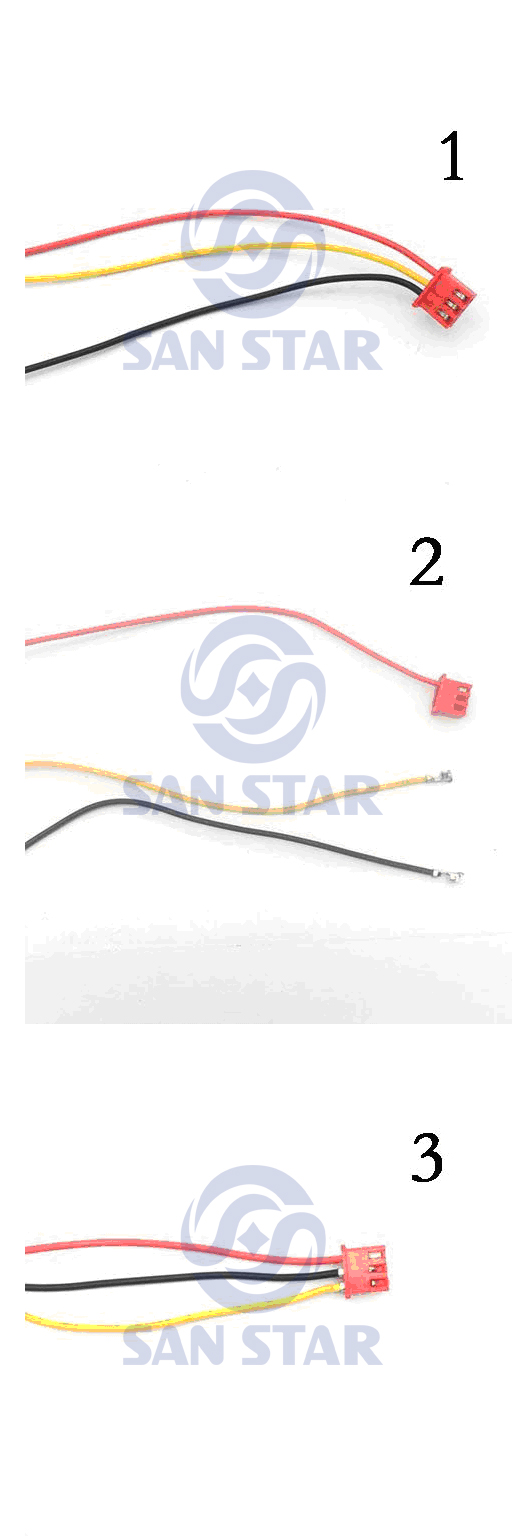

The standrad design for wires is that the LED lighted all the time.
If you need to make LED lighted only when you push the button .
Please reference PIC 3 to DIY the 3 Pin wires in these three steps
carefully.Thanks!
Support PS/3 /PC /Android /Xbox 360 for Windows

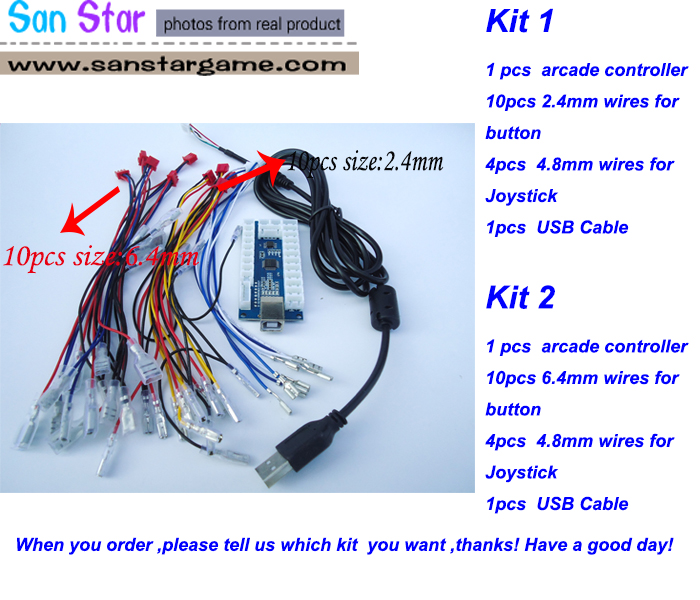

Kit 1
1 pcs arcade controller
10pcs 2.4mm wires for button
4pcs 4.8mm wires for Joystick
1pcs USB Cable
Kit 2
1 pcs arcade controller
10pcs 6.4mm wires for button
4pcs 4.8mm wires for Joystick
1pcs USB Cable
