Name: Arcade DIY Accessories 421 In One + 16A Power supply + 16x Button + 2 Joystick+…
Brand: San Star Arcade Online Store
SKU: K3-G4#41
Price: 103.7 USD
Availability: InStock

SKU: K3-G4#41

0.0 (0 Reviews)

0 Sold

~~$103.70~~ $103.70

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

Arcade DIY Kits Includes:

POWER SUPPLY *1
412 IN 1 * 1
PCB FEET （4pcs/pakage）*1
Microswitch For Button-3T *16
Full Machine Jamma Harness *1
FANS *1
FANS NET *1
Player Push Button P1/P2 EACH*1
American Push Button RD*6 BU*6 BK*2
Zippy Joystick Long Shaft RD *2

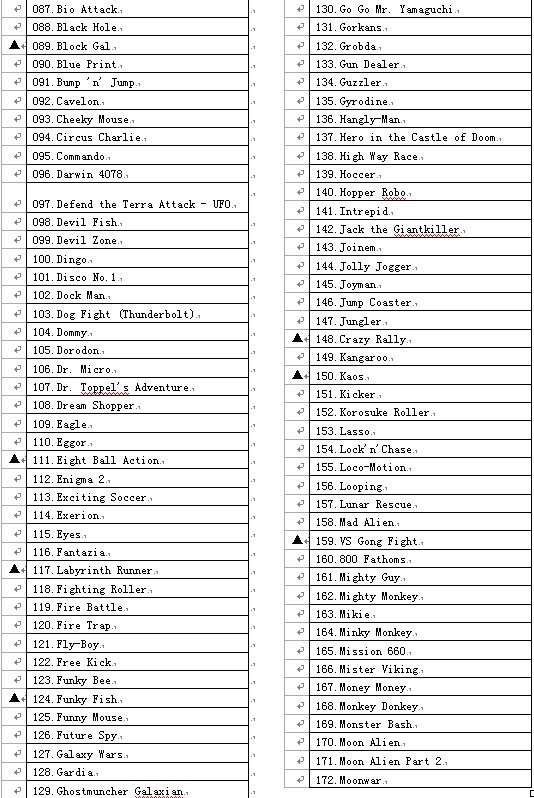

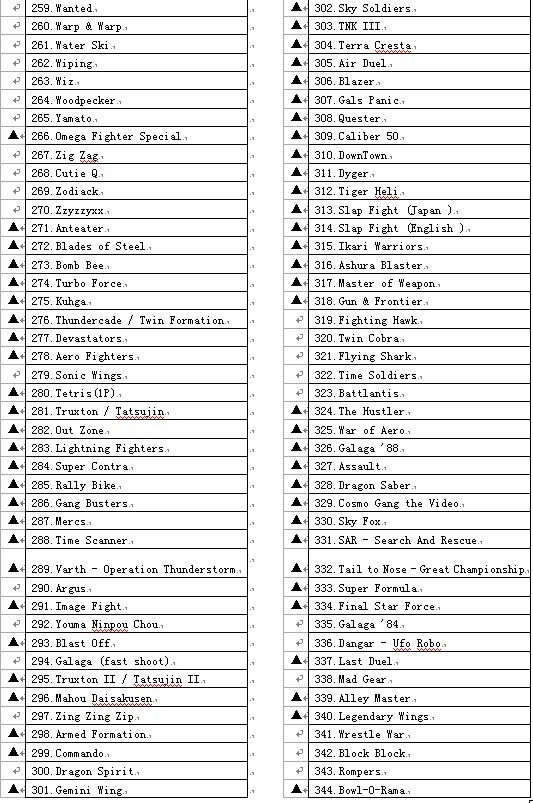

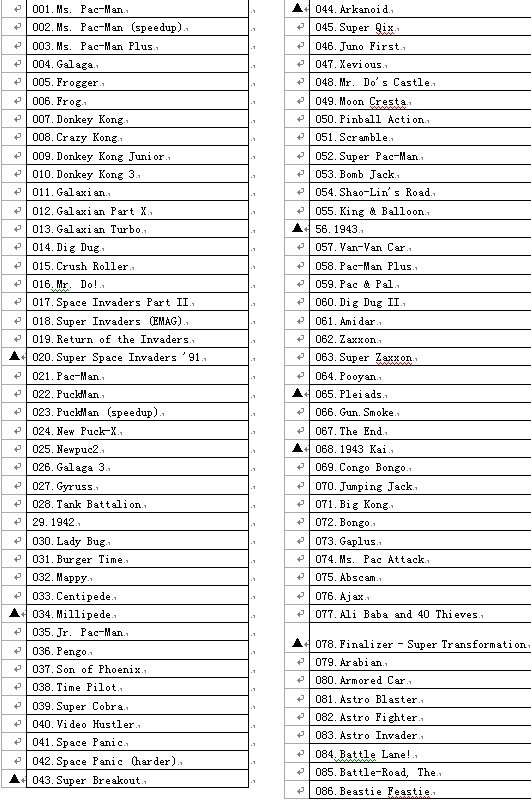

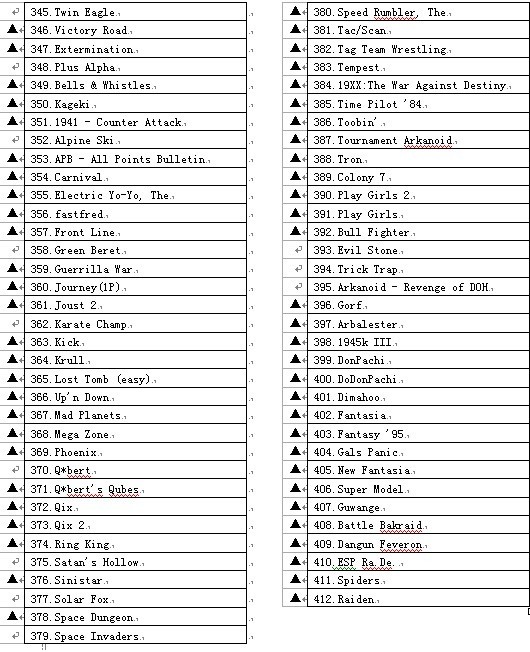

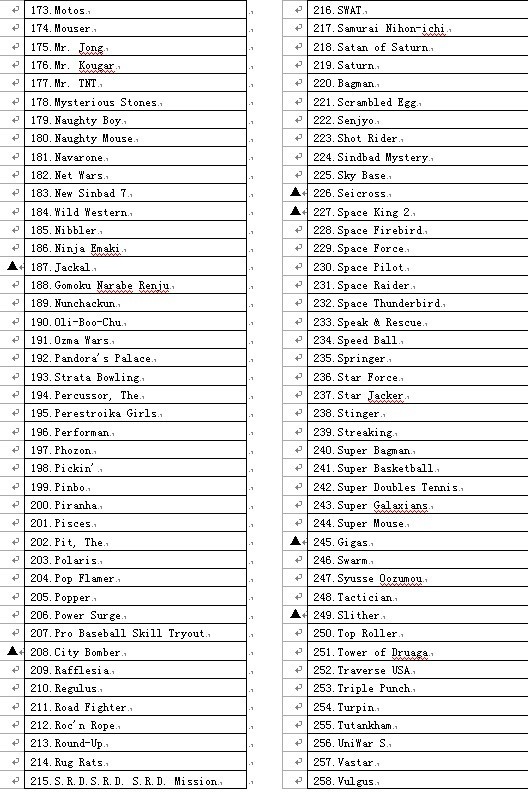

The Games of 412 in 1

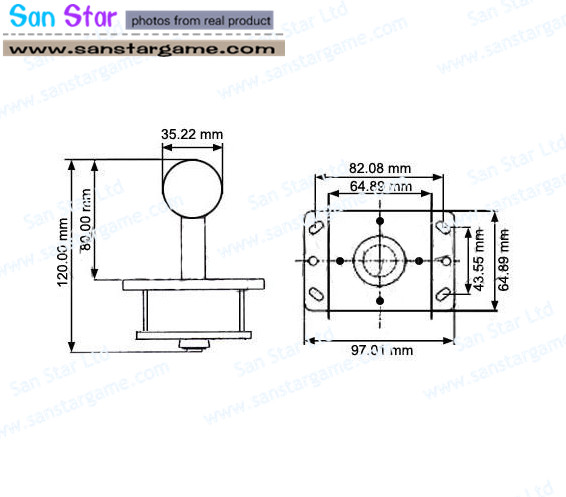

The Diagram About Joystick

Joystick which can change to 2 ways 4 ways and 8 ways,you can set which you want.The joystick have 7 color for you to choose,red,yellow,blue,green,white,black,pink.If you want to change the color from the picture,please leave us message what color you need.Otherwise we will send the color as the main picture.

The Diagram About American Push Button

Push Button 28mm mounting hole American style push button also comes with microswitch.This type of button have red,yellow,blue,green,white,black,white for you to choose.(If not mentioned what color you need when you order,then we will send the color as the main picture to you,If you have speical request,please send message to let us know).

The Diagram About Player Push Button

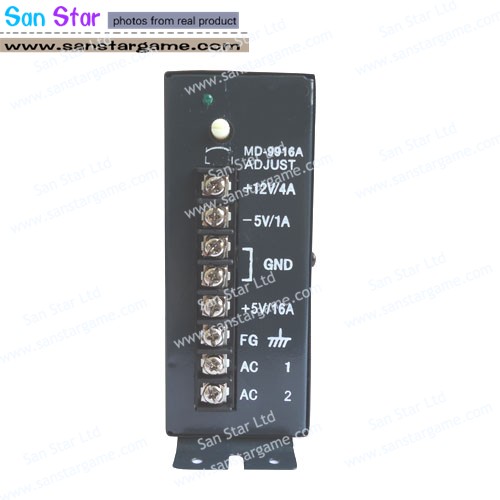

The Detail About Power Supply

Notice：Although there are three groups （+12/4A，+5V/16A, -5V/1A ） output on the picture ，in fact ，there are just 2 groups（ +12/4A，+5V/16A） output . Please notice that the output -5V/1A is not included.Any question,please contact us .Thanks.

Characteristic：
* Universal AC input/ Full range
* Low cost, high reliability
* High efficiency, low working temperature
* Built-in EMI filter
* 100% full load burn-in test
* Low ripple & noise
* Protections: short circuit/overload/over voltage

SPECIFICATION:
*Input Voltage----------------------115/230VAC
*Input frequency-------------------47—63Hz
*Inrush current---------------------cold start, 20A at 115V, 40A at 230V
*Overload protection--------------105%--150% hiccup mode, auto-recovery
*Over voltage protection---------115%---135% rated output voltage
*Setup, rise, hold up time--------200ms, 50ms, 20ms
*Withstand voltage----------------I/P—O/P, I/P—FG: 1.5KV, 1 minute
*Working temperature------------0-50℃ @ 100%, -10℃ @ 80%, 60℃ @ 60% load
*Connection-------------------------8P/9.5mm pitch terminal block with cover
*Net weight-------------------------0.58kg

Power Supply have a switch can change 110 and 220v,so no matter your country voltage is 110v or 220v both can work without problem.

The Detail About Jamma Harness

Jamma Harness our harness made with good quality,wire core is copper,not iron.And our craftwork of insulate sleeve is nice and neat.

Note:
1.As every country have different policy for import tax, so our price is not include the import tax. Please check your local tax before buying. Brazil customer if goods sent by EMS but can not receive goods for long time after goods sent out, please contact your local post office.

2.Ship cost is base on your detail delivery address is not remote area. If your detail delivery address is a remote area then need to pay USD$30 remote area fee.

3.If you want to change shipping method or combine order, please confirm your order but not pay, and contact us to adjust.
